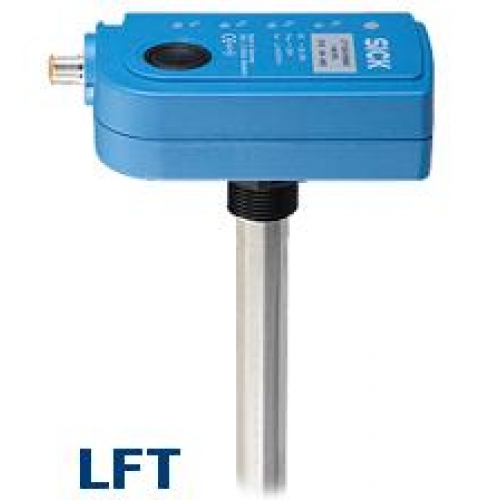

Output functions Analog output 4 ... 20 mA Namur
and/or switching output PNP 1)
Analogue output
Burden by 4 ... 20 mA < 500 Ω
Lower signal level 3.8 ... 4.0 mA
Upper signal level 20 ... 20.5 mA
Operating time 200 mS
Switching output2
Signal voltage HIGH VS – 2 V
Signal voltage LOW 0 V ≤ 1 V
Output current IA < 200 mA
Output load
Capacitive load 100 nF
Inductive load 1 H
Operating time 200 ms
Supply voltage Vs 3) 18 ... 30 V DC
Residual ripple ≤ 5 VPP
Current consumption 4) < 90 mA at 24 V DC
Protection class
Initialization time < 4 s
Connection types Plug M12, 5-pin
Plug M12, 8-pin
Measurement performance5)
Accuracy ± 3 mm
Reproducibility < 2 mm
Resolution < 1 mm
Hysteresis switching output 3 mm or free adjustable
Temperature drift 0.05 mm/K
Measuring range [M] 30 ... 1,990 mm (at probe length 2,000 mm)
Inactive area 6) Each 10 mm
Application conditions
Dielectricity constant [εr] 7) ≥ 1.8 8)
Conductivity 7) No restrictions
Temperature 9) 0 ... +80 °C
Ambient temperature 9) Operation –10 ... +60 °C
Storage –40 ... +80 °C
Container pressure 1 bar rel. (during fi lling and emptying processes)
Separating layer (e.g., oil on water) 10) > 70 mm
Mechanical data
Enclosure rating IP 67
Connection thread screw G 3/4“ A; 3/4“ NPT
Probe length [L] 100 ... 2,000 mm
Material Housing PBT
Probe 316L/1.4404
Seal/probe end 1.4404/1.4310/PTFE
