ÜRÜN ÖZELLİKLERİ

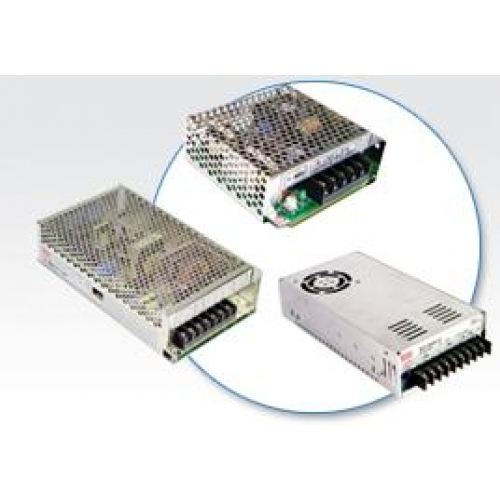

KATALOG - SD SERİSİ
2:1 geniş giriş voltaj aralığı (2:1 & 4:1 SD-500/1000 serileri)
1500VAC I/O izolasyonu
Korumalar: Kısa devre, aşırı yük, aşırı voltaj
Serbest hava akışı soğutmalı (SD-25/50/100/150/200 serileri)
Dahili DC fan ile soğutma (SD-350/500/1000 serileri)
Dahili uzaktan ON/OFF kontrolü ve çıkış voltaj algılama (SD-350/500/1000 serileri)
DC OK sinyal çıkışı (SD-500/1000 serileri)
%100 tam yük testi
2 yıl garanti
ÜRÜN KODU GİRİŞ GERİLİMİ ÇIKIŞ GERİLİMİ EBATLAR
25W SD SERİSİ
SD-25A-5 9.2~18VDC 5VDC 5A 99 x 97 x 36 mm
SD-25A-12 9.2~18VDC 12VDC 2.1A 99 x 97 x 36 mm
SD-25A-24 9.2~18VDC 24VDC 1.1A 99 x 97 x 36 mm
SD-25B-5 19~36VDC 5VDC 5A 99 x 97 x 36 mm
SD-25B-12 19~36VDC
12VDC
2.1A 99 x 97 x 36 mm
SD-25B-24 19~36VDC 24VDC 1.1A 99 x 97 x 36 mm
SD-25C-5 36~72VDC 5VDC 5A 99 x 97 x 36 mm
SD-25C-12 36~72VDC 12VDC 2.1A 99 x 97 x 36 mm
SD-25C-24 36~72VDC 24VDC 1.1A 99 x 97 x 36 mm
50W SD SERİSİ
SD-50A-5 9.2~18VDC 5VDC 10A 159 x 97 x 38 mm
SD-50A-12 9.2~18VDC 12VDC 4.2A 159 x 97 x 38 mm
SD-50A-24 9.2~18VDC 24VDC 2.1A 159 x 97 x 38 mm
SD-50B-5 19~36VDC 5VDC 10A 159 x 97 x 38 mm
SD-50B-12 19~36VDC 12VDC 4.2A 159 x 97 x 38 mm
SD-50B-24 19~36VDC 24VDC 2.1A 159 x 97 x 38 mm
SD-50C-5 36~72VDC 5VDC 10A 159 x 97 x 38 mm
SD-50C-12 36~72VDC 12VDC 4.2A 159 x 97 x 38 mm
SD-50C-24 36~72VDC 24VDC 2.1A 159 x 97 x 38 mm
100W SD SERİSİ
SD-100B-5 19~36VDC 5VDC 20A 199 x 98 x 38 mm
SD-100B-12 19~36VDC 12VDC 8.5A 199 x 98 x 38 mm
SD-100B-24 19~36VDC 24VDC 4.2A 199 x 98 x 38 mm
SD-100C-5 36~72VDC 5VDC 20A 199 x 98 x 38 mm
SD-100C-12 36~72VDC 12VDC 8.5A 199 x 98 x 38 mm
SD-100C-24 36~72VDC 24VDC 4.2A 199 x 98 x 38 mm
SD-100D-5 72~144VDC 5VDC 20A 199 x 98 x 38 mm
SD-100D-12 72~144VDC 12VDC 8.5A 199 x 98 x 38 mm
SD-100D-24 72~144VDC 24VDC 4.2A 199 x 98 x 38 mm
150W SD SERİSİ
SD-150B-12 19~36VDC 12VDC 12.5A 199 x 110 x 50 mm
SD-150B-24 19~36VDC 24VDC 6.3A 199 x 110 x 50 mm
SD-150C-12 36~72VDC 12VDC 12.5A 199 x 110 x 50 mm
SD-150C-24 36~72VDC 24VDC 6.3A 199 x 110 x 50 mm
SD-150D-12 72~144VDC 12VDC 12.5A 199 x 110 x 50 mm
SD-150D-24 72~144VDC 24VDC 6.3A 199 x 110 x 50 mm
350W SD SERİSİ
SD-350B-5 19~36VDC 5VDC 57A 215 x 115 x 50 mm
SD-350B-12 19~36VDC 12VDC 27.5A 215 x 115 x 50 mm
SD-350B-24 19~36VDC 24VDC 14.6A 215 x 115 x 50 mm
SD-350B-48 19~36VDC 48VDC 7.3A 215 x 115 x 50 mm
SD-350C-5 36~72VDC 5VDC 60A 215 x 115 x 50 mm
SD-350C-12 36~72VDC 12VDC 27.5A 215 x 115 x 50 mm
SD-350C-24 36~72VDC 24VDC 14.6A 215 x 115 x 50 mm
SD-350C-48 36~72VDC 48VDC 7.3A 215 x 115 x 50 mm
SD-350D-5 72~144VDC 5VDC 60A 215 x 115 x 50 mm
SD-350D-12 72~144VDC 12VDC 29.2A 215 x 115 x 50 mm
SD-350D-24 72~144VDC 24VDC 14.6A 215 x 115 x 50 mm
SD-350D-48 72~144VDC 48VDC 7.3A 215 x 115 x 50 mm
500W SD SERİSİ
SD-500L-12 19~72VDC 12VDC 40A 215 x 115 x 50 mm
SD-500L-24 19~72VDC 24VDC 21A 215 x 115 x 50 mm
SD-500L-48 19~72VDC 48VDC 10.5A 215 x 115 x 50 mm
SD-500H-12 72~144VDC 12VDC 40A 215 x 115 x 50 mm
SD-500H-24 72~144VDC 24VDC 21A 215 x 115 x 50 mm
SD-500H-48 72~144VDC 48VDC 10.5A 215 x 115 x 50 mm
1000W SD SERİSİ
SD-1000L-12 19~72VDC 12VDC 60A 295 x 127 x 41 mm
SD-1000L-24 19~72VDC 24VDC 40A 295 x 127 x 41 mm
SD-1000L-48 19~72VDC 48VDC 21A 295 x 127 x 41 mm
SD-1000H-12 72~144VDC 12VDC 60A 295 x 127 x 41 mm
SD-1000H-24 72~144VDC 24VDC 40A 295 x 127 x 41 mm
SD-1000H-48 72~144VDC 48VDC 21A 295 x 127 x 41 mm
Ebatlar (Boy x En x Yükseklik ) mm
