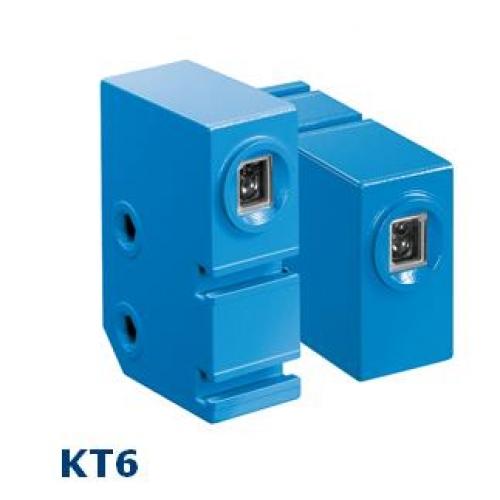

Scanning distance 10 ± 2 mm
from front edge of guard ring
Light spot dimensions 1.5 x 6.5 mm
Light source1), light type LED; red, green, blue
Wave length (nm) 640, 525, 470
Light spot position Vertical
Light emission Edge side
Length side
Supply voltage VS 10 ... 30 V DC2)
Residual ripple 3) < 5 VPP
Current consumption 4) < 40 mA
Switching output PNP: HIGH = VS – < 2 V / LOW = 0 V
NPN: HIGH = VS / LOW = < 2 V
Output current IA max. < 100 mA
Response time 5) 100 μs
Switching frequency 6) 5000/s
Retention 25 ms non-volatile memory
Connection type Plug 4-pin, M12
VDE protection class 7) V
Enclosure rating IP 67
Circuit protection 8) A, B, C
Ambient temperature TA Operation –10 ... +55 °C
Storage –25 ... +75 °C
Shock load To IEC 68
Weight Approx. 400 g
