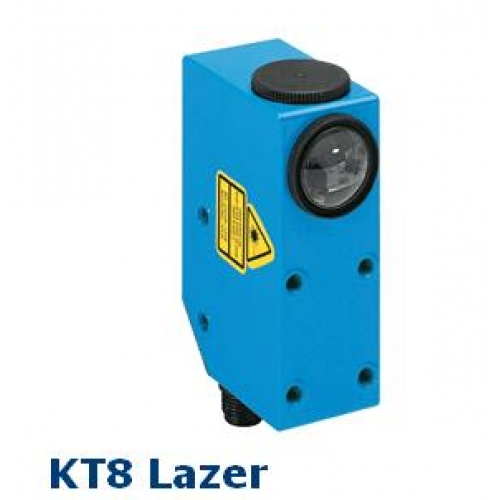

Scanning distance 150 mm1)
Operating distance 30 ... 800 mm1)
30 ... 600 mm1)
Light source, light type Laser diode, Laser, red light2)
Laser class 2 (IEC 60 825-1/C.D.R.H)
Light spot size Ø < 0.3 mm at 150 mm
Ø 3 mm at 150 mm
Supply voltage Vs DC 10 ... 30 V3)
Ripple < 5 V4)
Power consumption < 80 mA5)
Switching outputs NPN
PNP
Switching mode Light/dark switching,
adjustable via teach-in
Signal voltage PNP HIGH / LOW Vs - < 2 V / 0 V
Signal voltage NPN HIGH / LOW Vs / < 2 V
Output current Iamax < 100 mA
Response time < 30 μs6)
Switching frequency 17 kHz7)
Analogue output 0.3 ... 10 mA
Jitter < 10 μs
Teach-in input (ET), PNP Teach > 10 V ... < Vs
Run 0 V or unswitched8)
Teach-in input (ET), NPN Teach 0 V
Run Vs or unswitched8)
Adjustment 2-point Teach-in, static
Teach-in dynamic (min/max)
Time delay Deactivation delay inactive (default)
20 ms (adjustable)
Retention time 25 ms non-volatile memory
Connection type Connector, M12, 5-pin
VDE protection class 9)
Circuit protection Vs connections reverse-polarity protected
/ Outputs Q and QA short-circuit protected
/ Interference suppression / Outputs
overcurrent and short-circuit protected
Enclosure rating IP 67
Ambient temperature operation -10 °C ... +45 °C
Ambient temperature storage -25 °C ... +75 °C
Shock load According to IEC 68
